CB Radio MIDLAND ALAN 102

Product description

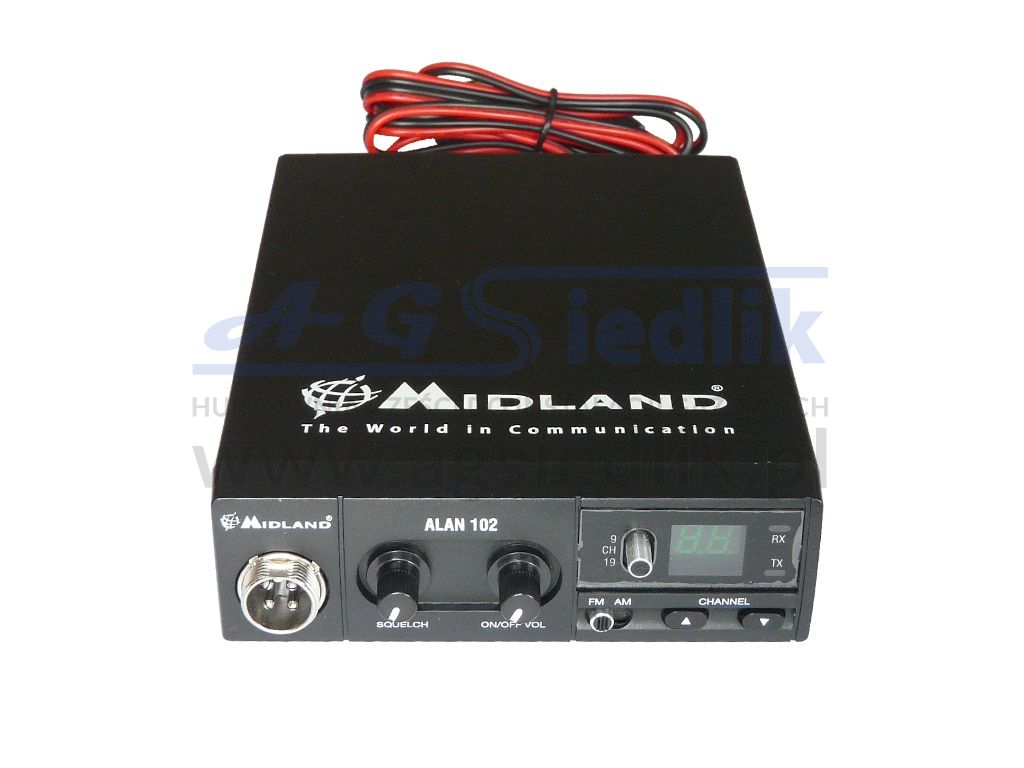

MIDLAND ALAN 102 is a transportable, 40-channel transceiver operating in the band CB.

Specifications

Frequency Range: 26.960 to 27.400 MHz
Number of channels: 40 FM / AM
Frequency Control: PLL loop
Operating temperature: -10 / +55 ° C
Power supply: 13.8V DC ± 15%
Dimensions: 190 (L) x38 (H) x124 (W) mm

RECEIVER
Receiving System: Dual conversion superheterodyne frequency
Intermediate frequencies: 10.695 MHz and 455 kHz
Sensitivity: <1μV for 20 dB SINAD
Audio Output Power: Min.2.0 W @ 8 Ohm
Audio Distortion: less than 3% @ 1 KHz
Power consumption during standby: 200mA

Transmitter
Output: DC 4W@13.8V
Mudulacja: AM: 85% to 95% FM: 1.8 KHz ± 0.2 KHz
Maximum current: 1100mA (no modulation)

The set includes:

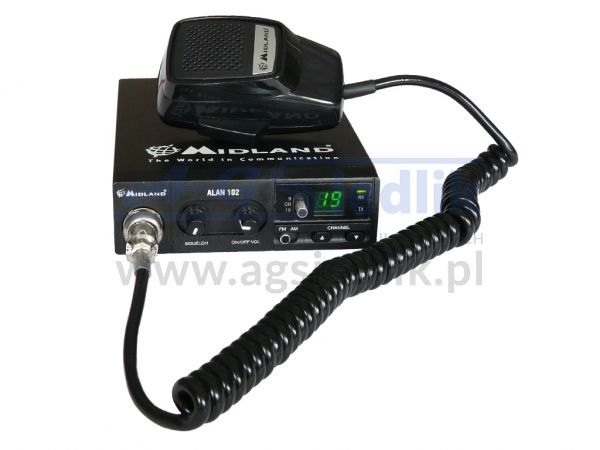

•      radiotelephone

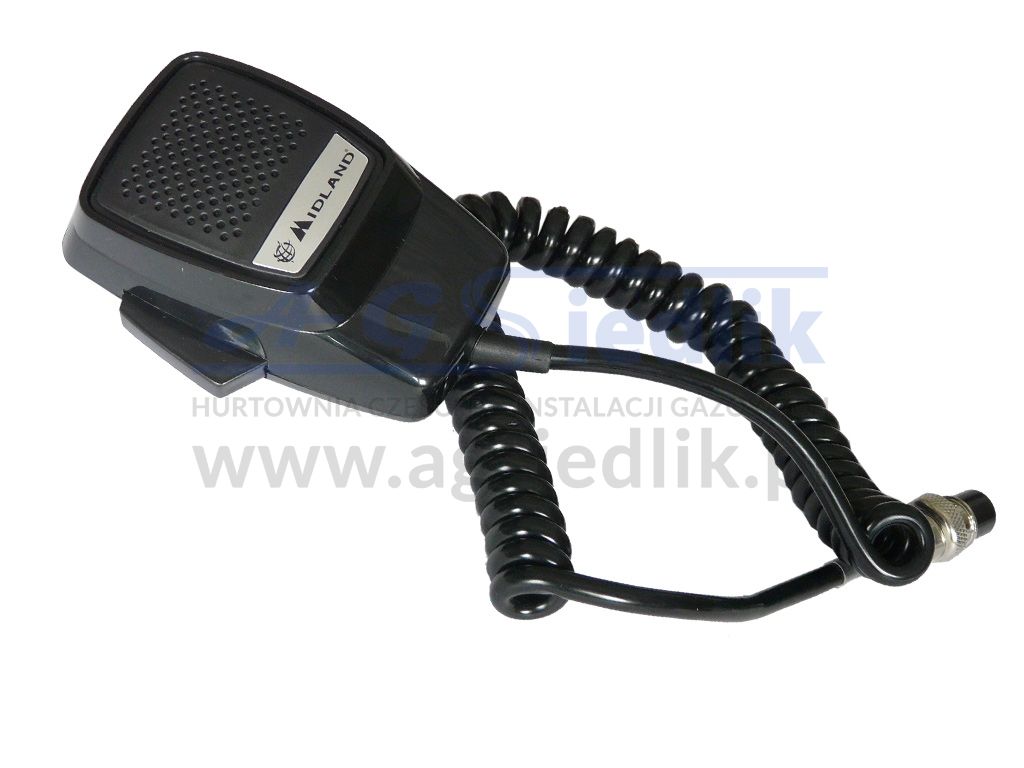

•      microphone
•      microphone holder

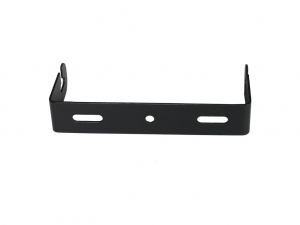

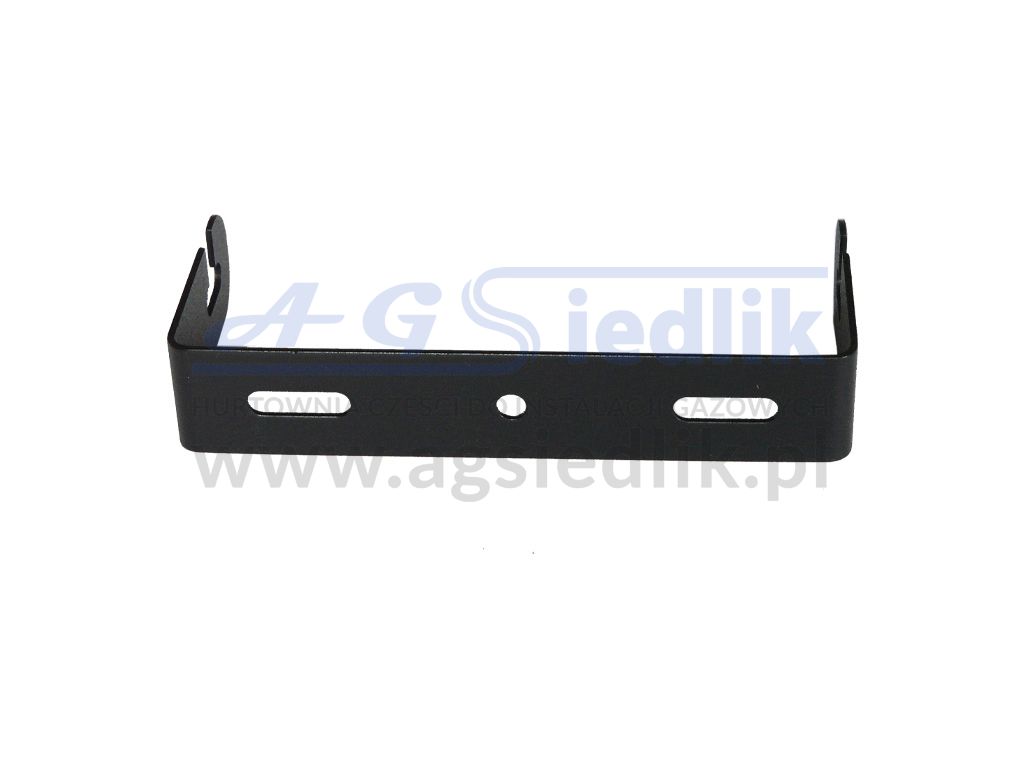

•      radio mounting bracket
•      user manual

Description of the application

Modern design with the use of:

•      phase-locked loop system ensures high precision frequency control,
•      ceramic filters to ensure the highest selectivity,
•      SQUELCH circuit with hysteresis automatically compensates for signal fading,

can meet the demanding technical requirements.

Price for a set of products.
