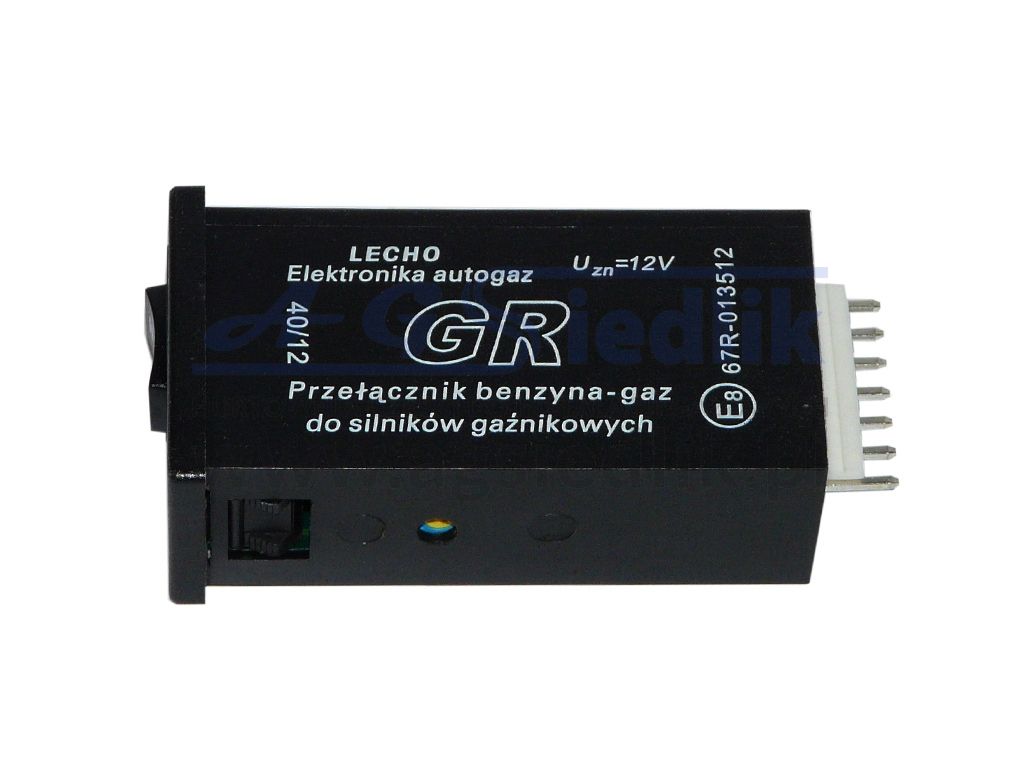

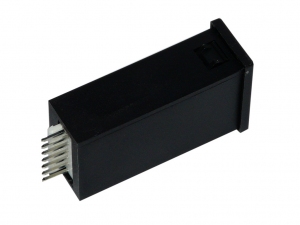

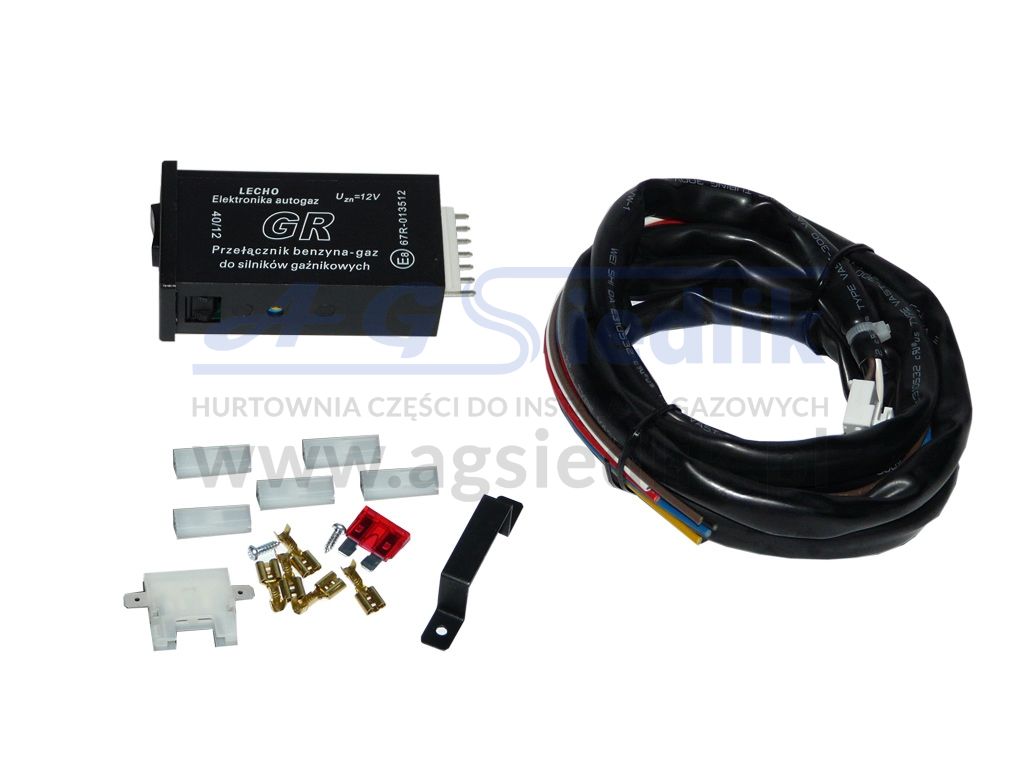

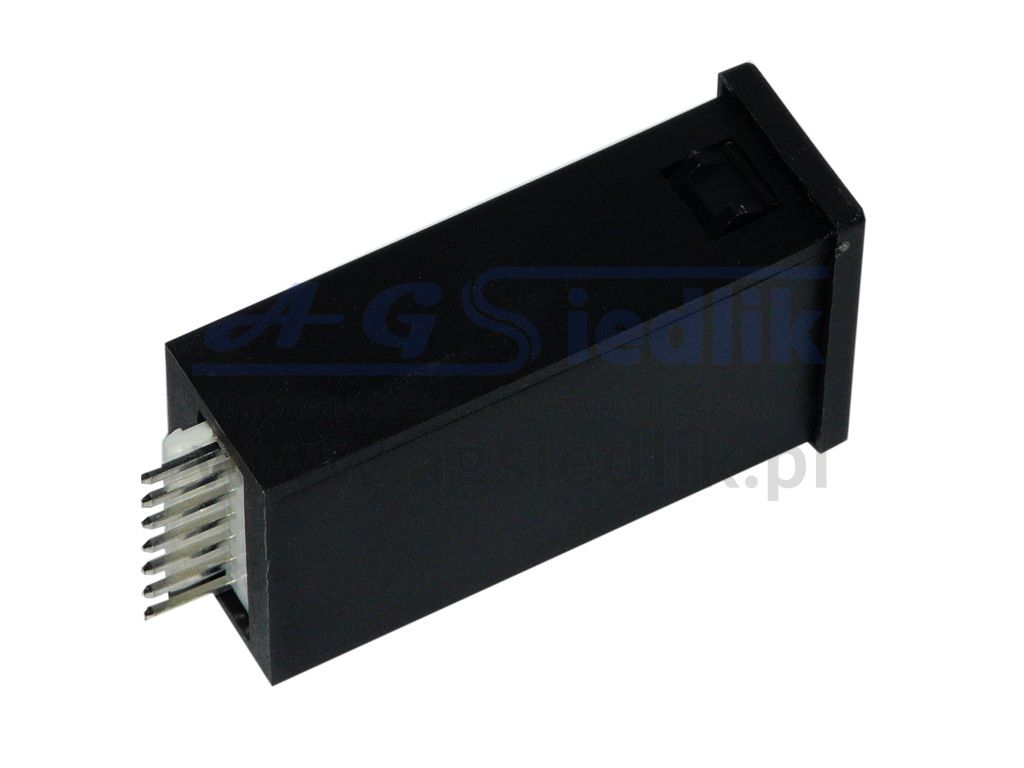

GR central switch to LPG STAG 2G

Mode switch petrol - gas engine vehicles Carburation GR.

GR device is used to manually switch the power to the motor vehicle equipped with carburetors and installation of LPG.

Three modes of operation, controlled three-position switch allows the gentle and harmless to the engine switch from petrol to LPG or petrol. Mode I is working on gasoline during which all elements of the gas system are exclusive. 0 mode allows you to burn the contents of the carburetor before moving on to other power to prevent engine flooding two fuels simultaneously. Mode II is working on the gas when you start the system is shut off the motor gasoline. Current status is indicated by LEDs located on the front panel of the unit.

In addition, the GR-01 allows you to force an extra dose be administered by the gas to the engine during start-up on the gas. This process is done automatically without the need for user intervention at power vehicle before you even start the starter. The time at which the gas is to be administered at the time of the engine is set using the potentiometer is available in the side of the device. If the vehicle will not start gas supply is turned off automatically.

In addition, the switch GR-01 is equipped with a signal reach gas reserves in the tank.

Technical data

•      Power rating 12V
•      Power maximum 10 .16 V
•      Operating temperature -25 ... +70 ° C
•      Supply current 0.15 A
•      Output load switching solenoid valve 6A
•      On-reserve warning light weight

The price is for 1 unit of the product.
