AC STAG R03 Compact Reducer + E01 STD - Ø6 up to 350 HP

Product Description

AC STAG R03 Compact Reducer + E01 STD - Ø6 up to 350 HP

Technical Specifications

• Maximum output: from 184 kW / 250 HP up to 257 kW / 350 HP

• Inlet pipe diameter: M10x1 / 6 mm

• Coolant hose diameter: 16 mm

• LPG hose diameter: 12 mm

• Temperature sensor: built-in

• Dimensions without fittings: diameter 65 mm, height 115 mm

Set includes:

• AC STAG R03 Compact reducer

• E01 STD - Ø6 up to 350 HP

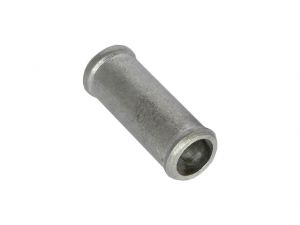

• Mounting components

Application

The reducer supports vehicles with power up to 184 kW / 250 HP, and up to 257 kW / 350 HP when using an additional outlet fitting.

It is used in sequential injection systems. The reducer features a special gas supply system — piston-operated.

Thanks to this, the reducer offers improved performance and changes its operating characteristics.

It is ideal for vehicles with limited space in the engine compartment.

The price is for 1 piece of the product.
