SHARK 1500 – Sequential LPG Reducer – 200 HP
+48 603 775 778
Product Description

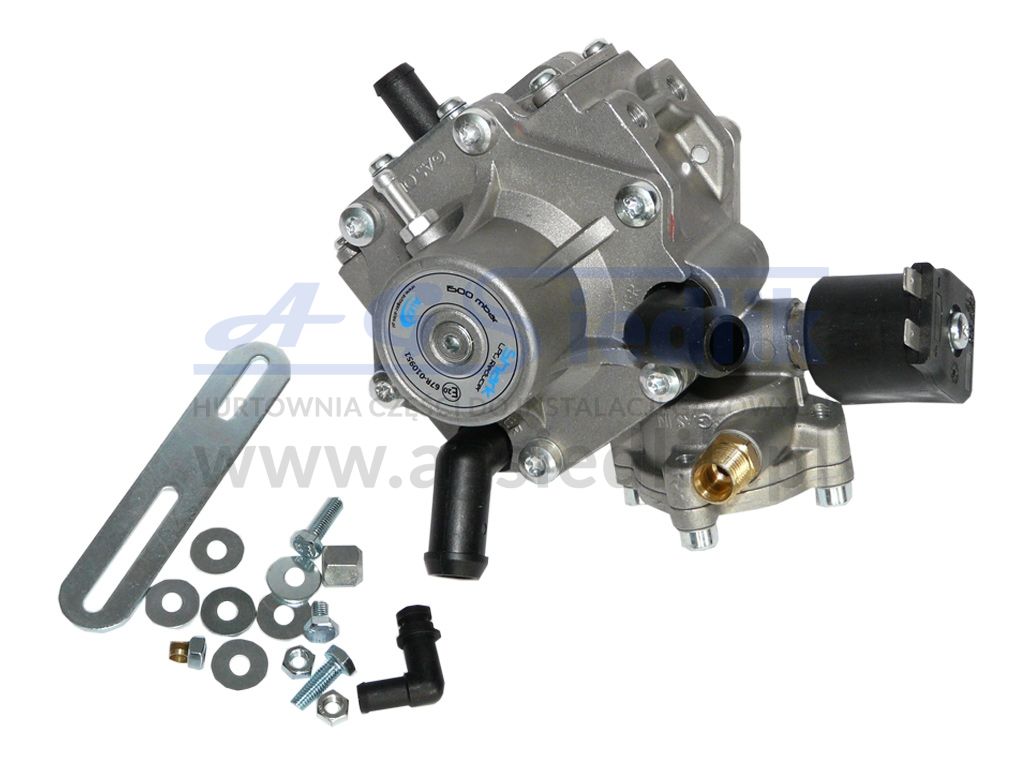

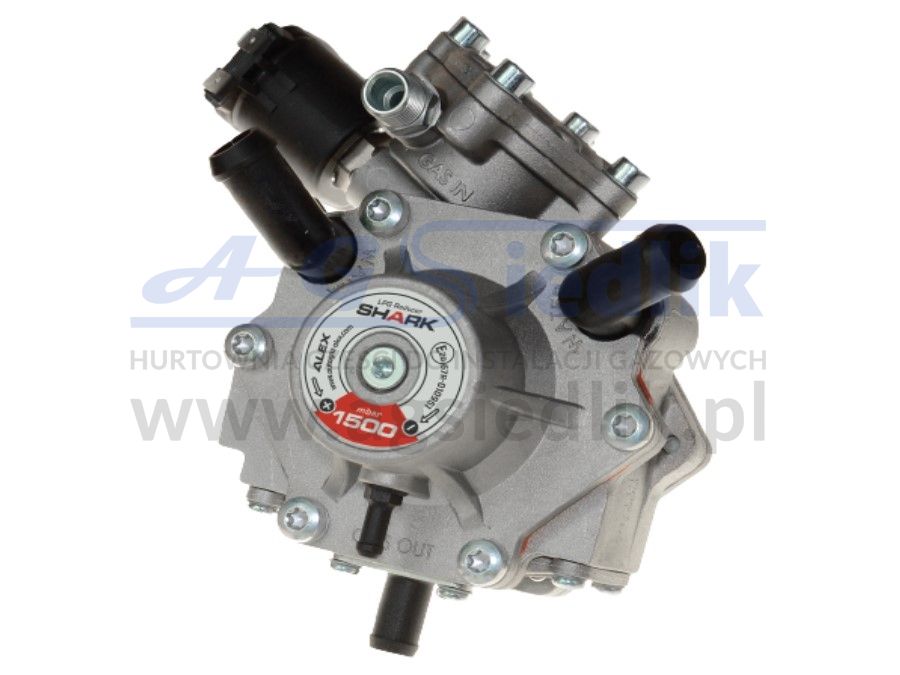

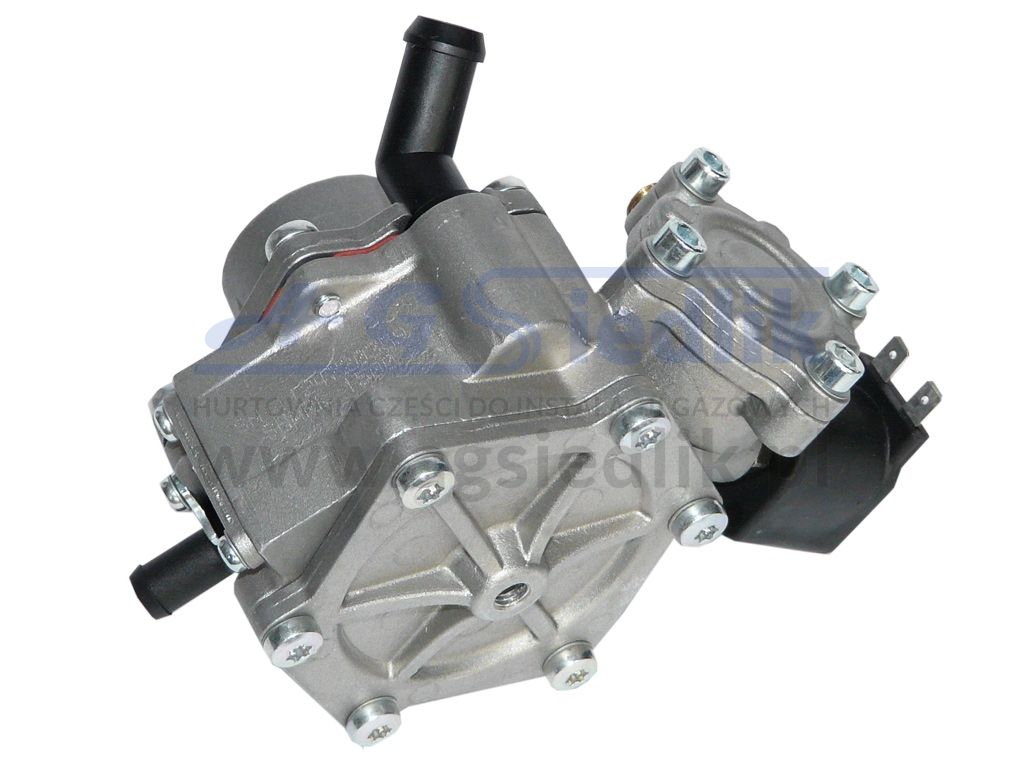

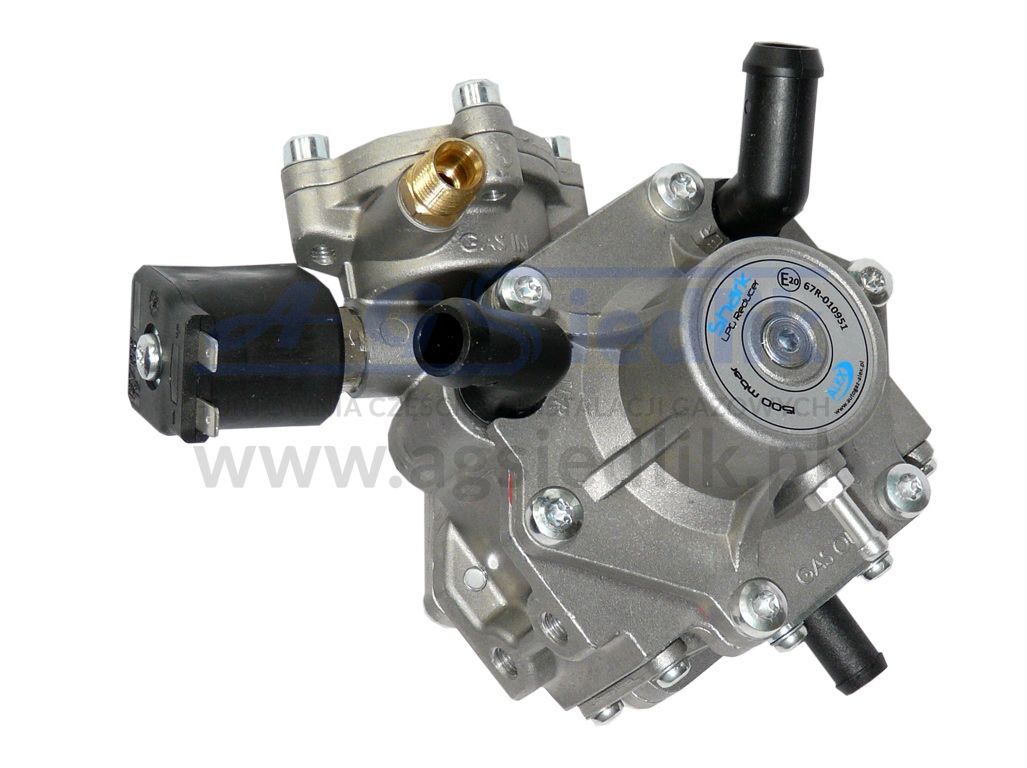

SHARK 1500 LPG Reducer for Sequential Gas Injection Systems
Technical Specifications:
-
Integrated shut-off solenoid valve, powered by 12 V
-
Built-in liquid phase gas filter
-
Outlet pressure: 1.5 bar
-
Adjustable pressure range: 1.3 ÷ 1.9 bar
-
Suitable for engine power up to 200 HP
-
Pressure adjustment: SW4 (4 mm Allen key)
-
Gas inlet pipe diameter: Ø 6 mm
-
Gas outlet nozzle diameter: Ø 12 mm
-
Swivel water connectors: Ø 16 mm
-
Vacuum port: Ø 5 mm
-
Dimensions: 95 x 109 x 93 mm
-
Weight: 1.6 kg
Application:
Sequential LPG reducer designed for vehicles with engines up to 147 kW / 200 HP.
The modern design of the SHARK 1500 reducer ensures proper performance and contributes to the reliable operation of the LPG system.
This model features a high-flow integrated solenoid valve and a liquid phase gas filter to enhance gas flow and system reliability.
Easy access to pressure adjustment – the adjustment port (4 mm Allen) is centrally located in the reducer.
A specially designed diaphragm ensures full performance and prevents pressure drops across the entire load range.
The reducer can be installed in two different planes, making the installation process easier for the mechanic.
The price refers to 1 unit of the product.
